ZY-B1（JC）D 软成型封边机

工作气压Working pressure

0.6MPa

*总功率Total power

56kw

进给速度Feed speed

7m/min

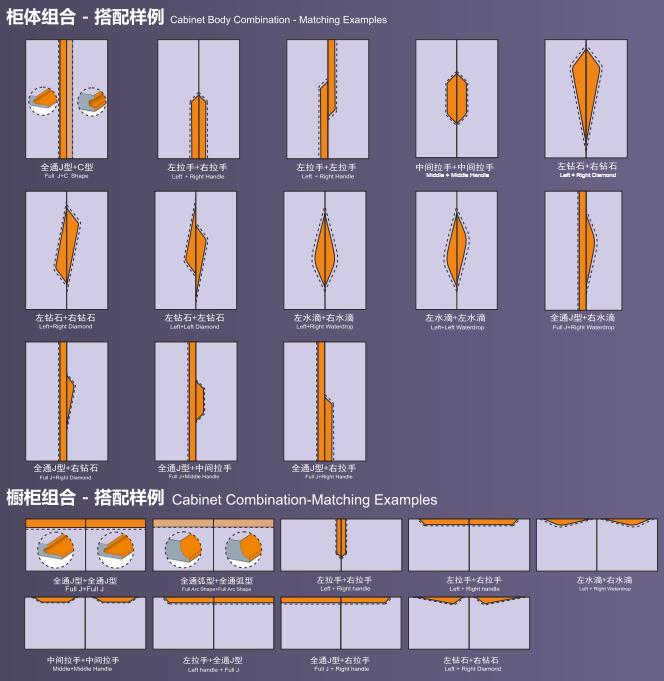

加工形状Profile available

1）左右部分小角度J型Left/right partial small angle J;

2）左右部分大角度J型Left/right partial big angle J;

3）直通Full J;

4）直通Full C;

5）中间小角度J型Central small angle J shape;

6）中间大角度J型Central big angle J shape;

7）左右部分钻石J型Left/right partial diamond J shape;

8）左右部分水滴J型Left/right partial water drop shape.

板料厚度Panel thickness

18/22mm

板料最小尺寸 长*宽（其中长为封面）

Panel Minimum size  L*W (L=process edge)

1）左右部分小角度J型Left/right partial small angle J;

2）左右部分大角度J型Left/right partial big angle J;

3）直通Full J;

4）直通Full C;

5）中间小角度J型Central small angle J shape;

6）中间大角度J型Central big angle J shape;

≧300*150mm

7）左右部分钻石J型Left/right partial diamond J shape;

8）左右部分水滴J型Left/right partial water drop shape.

≧450*150mm

封边带厚度Edge banding tape thickness

0.52-0.54mm

封边带材质Edge banding tape material

PVC建议用麻面或木纹面、柔韧性好材质

Suggest using materials with hemp or wood grain surface and good flexibility

*外形尺寸Overall size

10033*1000*2000mm

*重量Weight

4500kg（参考值Reference value）

工控一体机配置

Industrial control integrated

machine configuration

21.5”电容触摸平板电脑Screen touch panel computer

运行内存4G/硬盘64G running memory/hard disk

Win10操作系统Operative system

数据端口开放、支持网络连接data port open, network connection supported
